Elbows

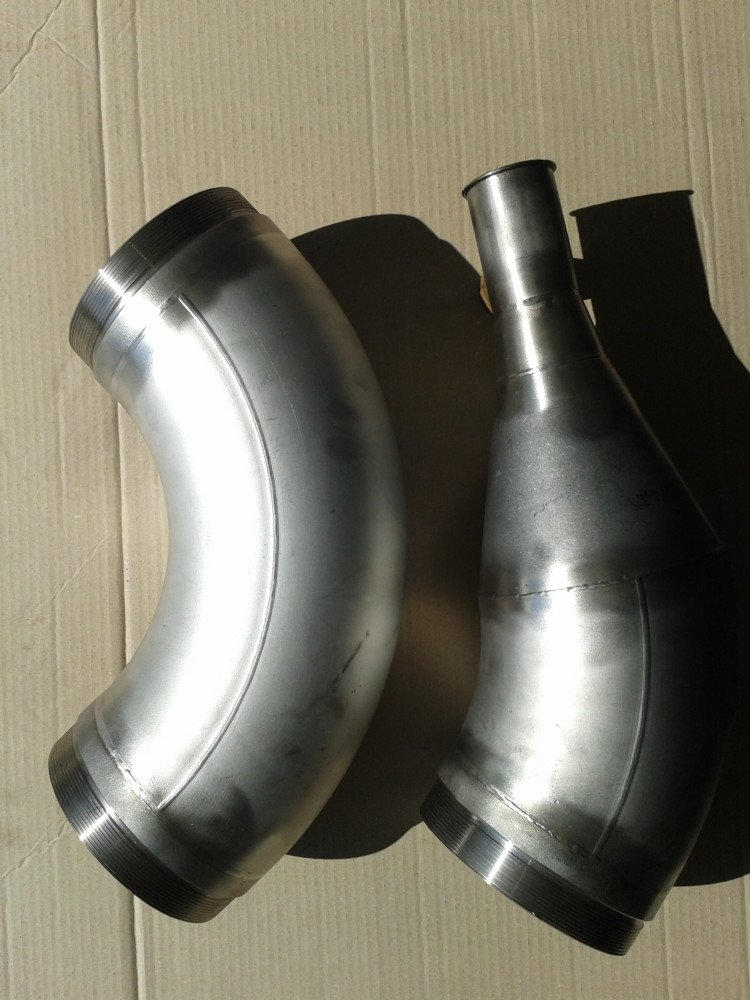

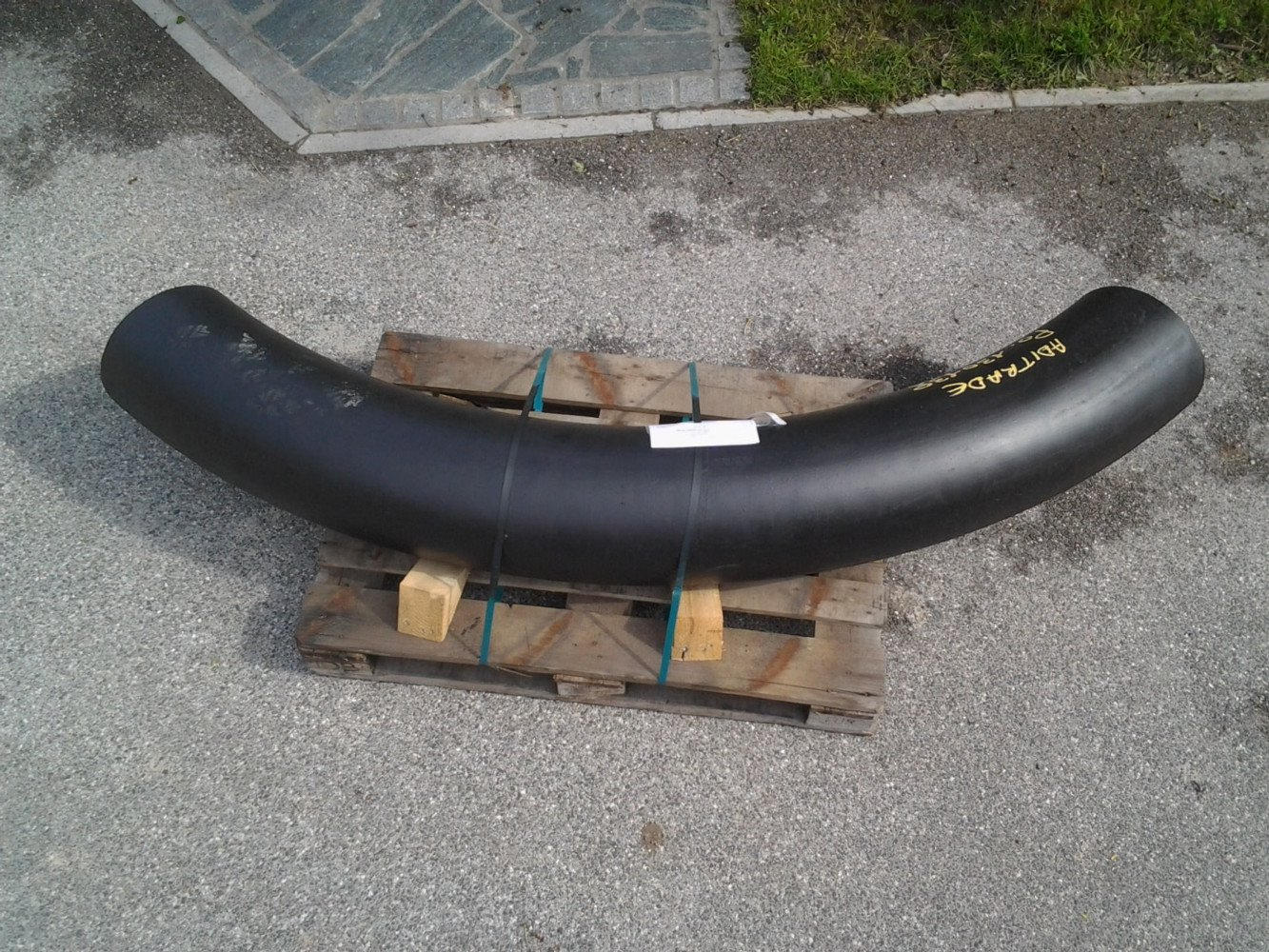

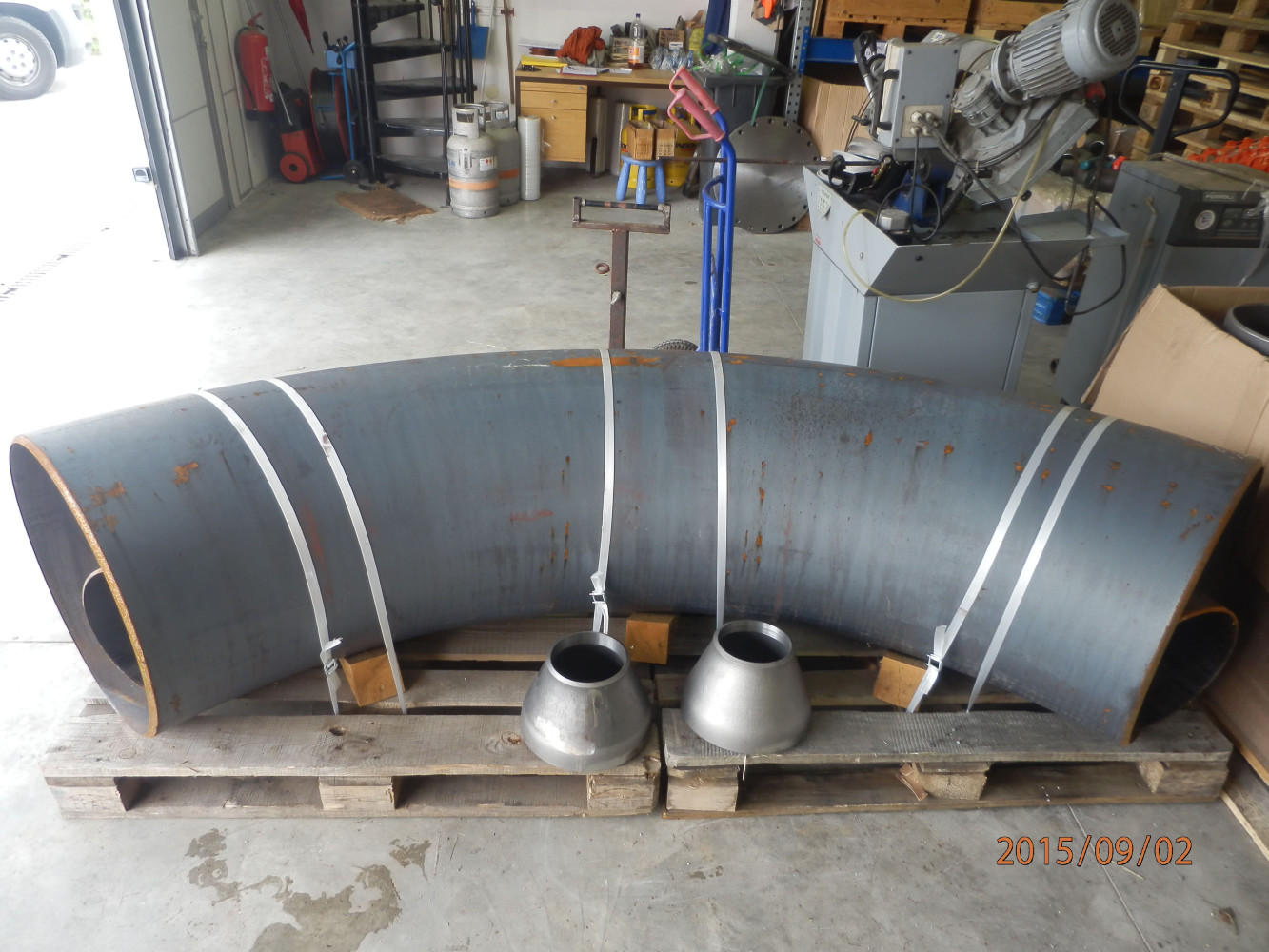

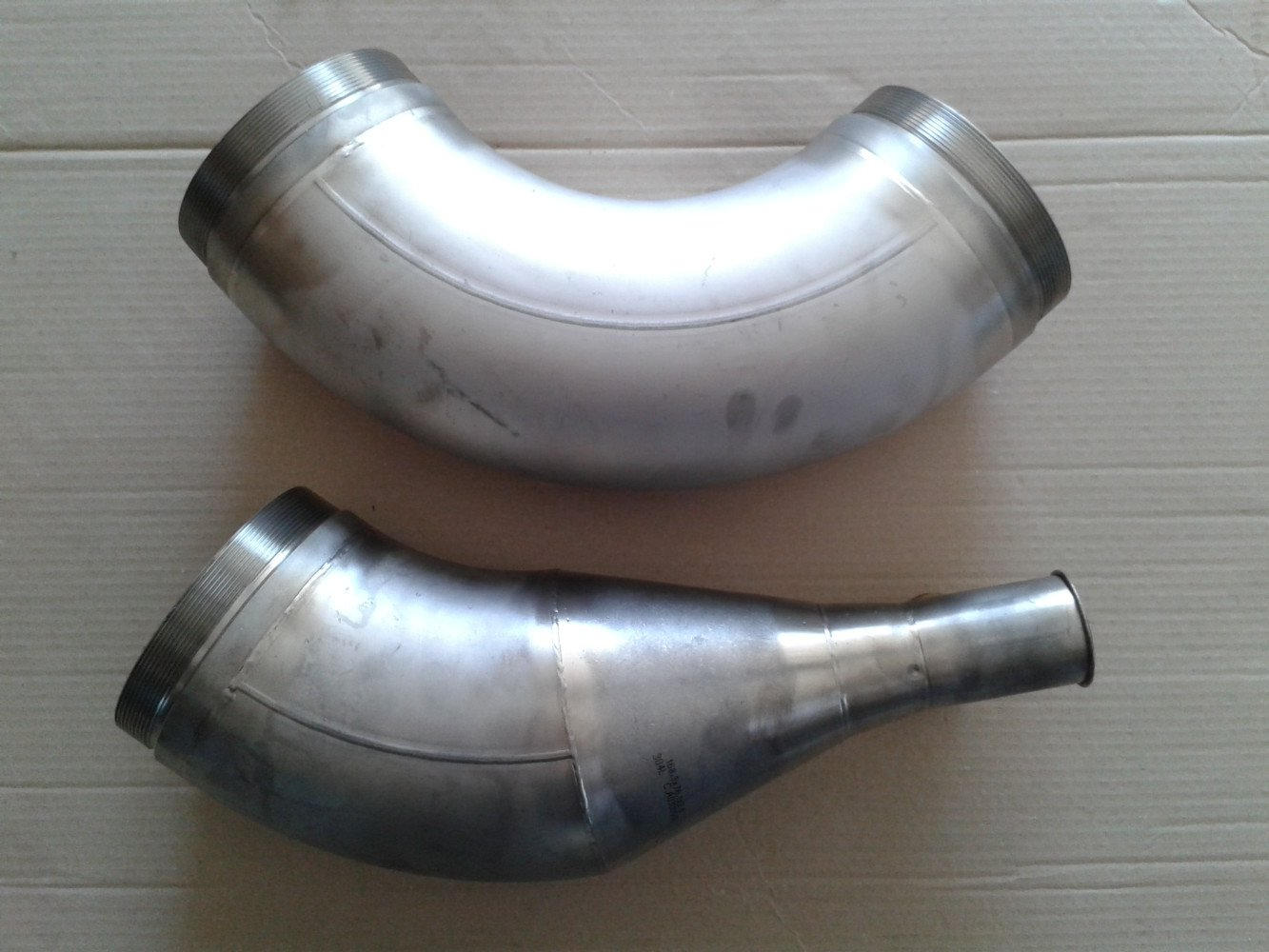

Elbow type: welded, seamless, segmental, according to customer's drawing
Material of the elbows: St35.1 / I, St35.8 / III, St37.0, P235TC1, P235TC2, P235GHTC1, 16Mo3, 10CrMo910, 13CrMo44, 1.4301, 1.4404, 1.4408, 1.4571, 1.4762, S235JRH, S355J2H, HII, A 235 Grade WPB, ...
Standard: DIN, ASME, ANSI, ...
Size: from 17.2 to 2032mm. We offer knees of different radii and different thicknesses for various pressures.
Kolena 90° 1,5d St35.8/I DIN2605
DN | f D [mm] | WT [mm] | f R [mm] | K [mm] | Teža [kg] | |
1 | 15 | 21.3 | 2.3 | 28 | 38 | 0.06 |
2 | 20 | 26.9 | 2.3 | 29 | 43 | 0.06 |
3 | 25 | 33.7 | 2.6 | 38 | 56 | 0.12 |
4 | 32 | 42.4 | 2.6 | 48 | 69 | 0.19 |
5 | 40 | 48.3 | 2.6 | 57 | 82 | 0.27 |
6 | 50 | 60.3 | 2.9 | 76 | 106 | 0.5 |
7 | 65 | 76.1 | 2.9 | 95 | 133 | 0.81 |
8 | 80 | 88.9 | 3.2 | 114 | 159 | 1.28 |
9 | 100 | 108 | 3.6 | 142.5 | 196 | 2.15 |
10 | 100 | 114.3 | 3.6 | 152 | 210 | 2.4 |
11 | 125 | 133 | 4 | 181 | 247 | 3.61 |
12 | 125 | 139.7 | 4 | 190 | 260 | 4.26 |
13 | 150 | 168.3 | 4.5 | 229 | 313 | 6.5 |
14 | 200 | 219.1 | 6.3 | 305 | 414 | 15.9 |
15 | 250 | 273 | 6.3 | 381 | 518 | 25 |
16 | 300 | 323.9 | 7.1 | 457 | 619 | 40 |
17 | 350 | 355.6 | 8 | 533 | 711 | 57 |
18 | 400 | 406.4 | 8.8 | 610 | 813 | 82 |
18 | 500 | 508 | 11 | 762 | 1016 | 162 |
|
